Clean Water Pumps

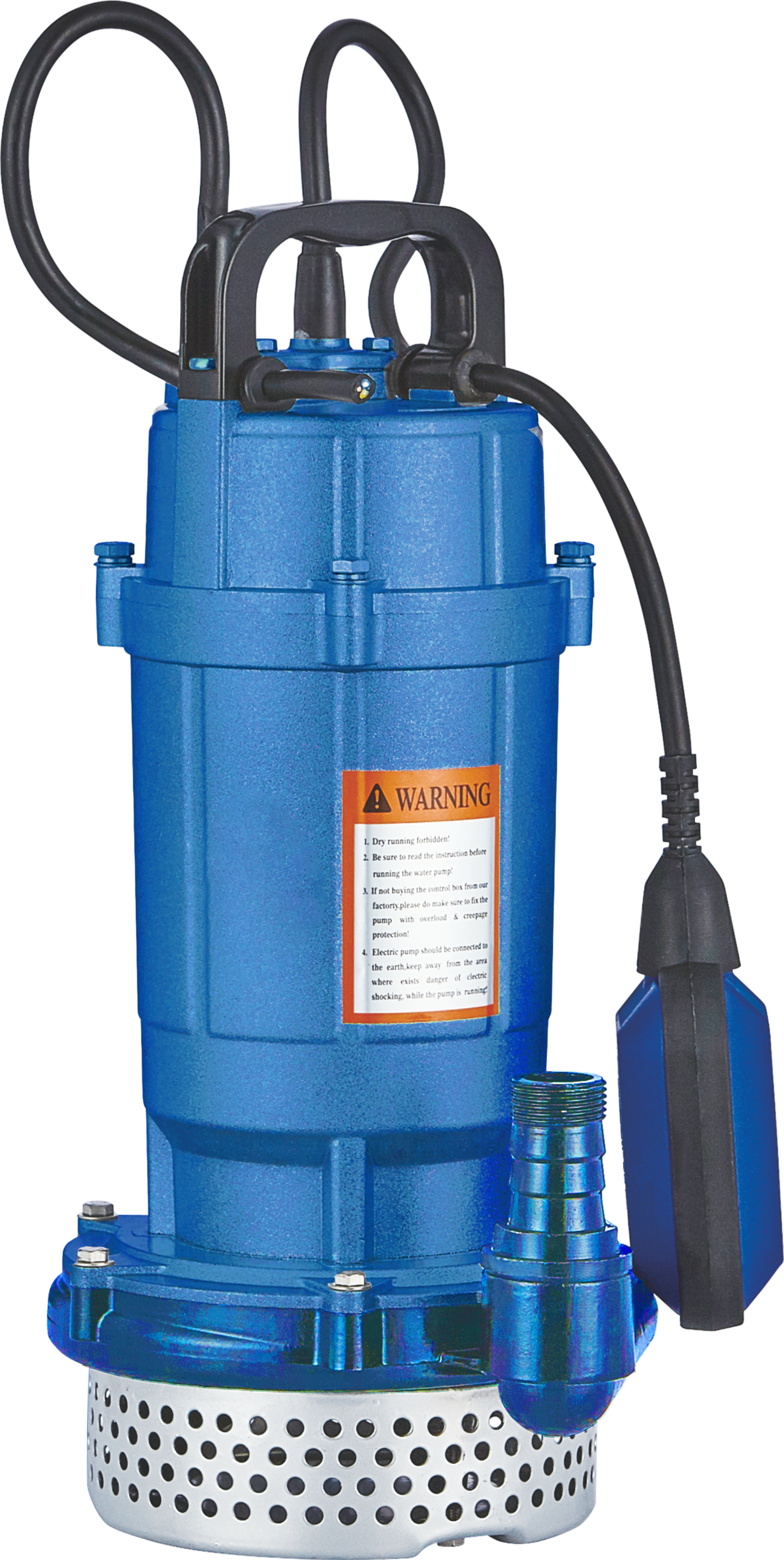

ASTROLABE MSAm 0.37 Submersible Clean Water Pump
Model: MSAm0.37-1.5-18FSKU: AST-MSAM037
$179.99
Columbus warehouseQuantity not confirmed
1
Shipping Options
Confirmed per order
Warranty
Contact us for approved terms
Datasheet
Available on request
Technical Specifications

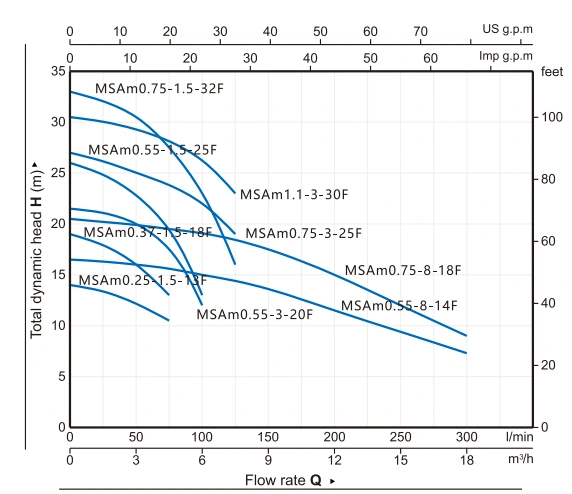

Hydraulic Performance
- Maximum flow
- 100 L/min
- Maximum head
- 19 m
Motor & Electrical
- Power
- 0.37 kW
- Horsepower
- 0.5 HP
- Voltage
- 110 V
- Frequency
- 60 Hz
- Phase
- Single phase
- Insulation class
- B
Construction & Materials
- Pump body
- Aluminum, with threaded opening
- Impeller
- PPO+30GF
- Motor winding
- Copper wire
Operating Conditions
- Maximum submersion depth
- 5 m
- Maximum liquid temperature
- 40 °C
- IP rating
- IP68

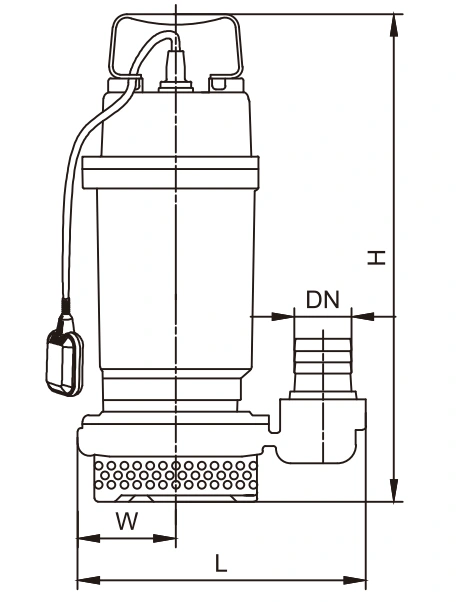

Dimensions & Weight
- Product dimensions
- DN 1" · W 75 mm · L 195 mm · H 340 mm
- Product weight
- 6.5 kg
- Carton dimensions
- 40.5 × 23 × 19 cm
Installation & Connections
- Outlet size
- 1"
- Cable
- 3 × 1.0 mm² × 10 m VDE cable assembly
- Plug
- American plug
Protection & Special Features
- Float switch
- Yes
Features & Benefits
- 0.37 kW motor (0.5 HP) — a clear power reference when comparing models.
- 110 V / 60 Hz, single phase electrical configuration for installation planning.
- Aluminum, with threaded opening pump body with a PPO+30GF impeller — specified materials for reviewing the pumped liquid and operating environment.
- Supplied with a float switch for water-level control; confirm the switching arrangement and clearance for your installation.
- 1" outlet — check hose or pipe compatibility before installation.
- 3 × 1.0 mm² × 10 m VDE cable assembly; american plug — supplied connection details for planning the power connection.
- 6.5 kg listed product weight for handling and installation planning.
Applications
Industrial water drainage and supplyResidential and living water supplyAquaculture and breeding facility water managementFarm irrigationGarden irrigationWell-water lifting
Overview
The ASTROLABE™ MSAm0.37-1.5-18F is the lower-power model in the MSA clean-water pump range, designed for submerged water transfer. Its compact format offers a practical starting point for projects where installation space and handling matter. The verified catalog lists a maximum flow of 100 L/min and a maximum head of 19 m. These are separate maximum ratings, not a single operating point; actual delivery depends on the required head, pipework and installation conditions. Observe the listed maximum submersion depth of 5 m and maximum liquid temperature of 40 °C. Confirm liquid compatibility, the required flow at your operating head and electrical installation requirements before selecting this model.
