Drainage & Utility Pumps

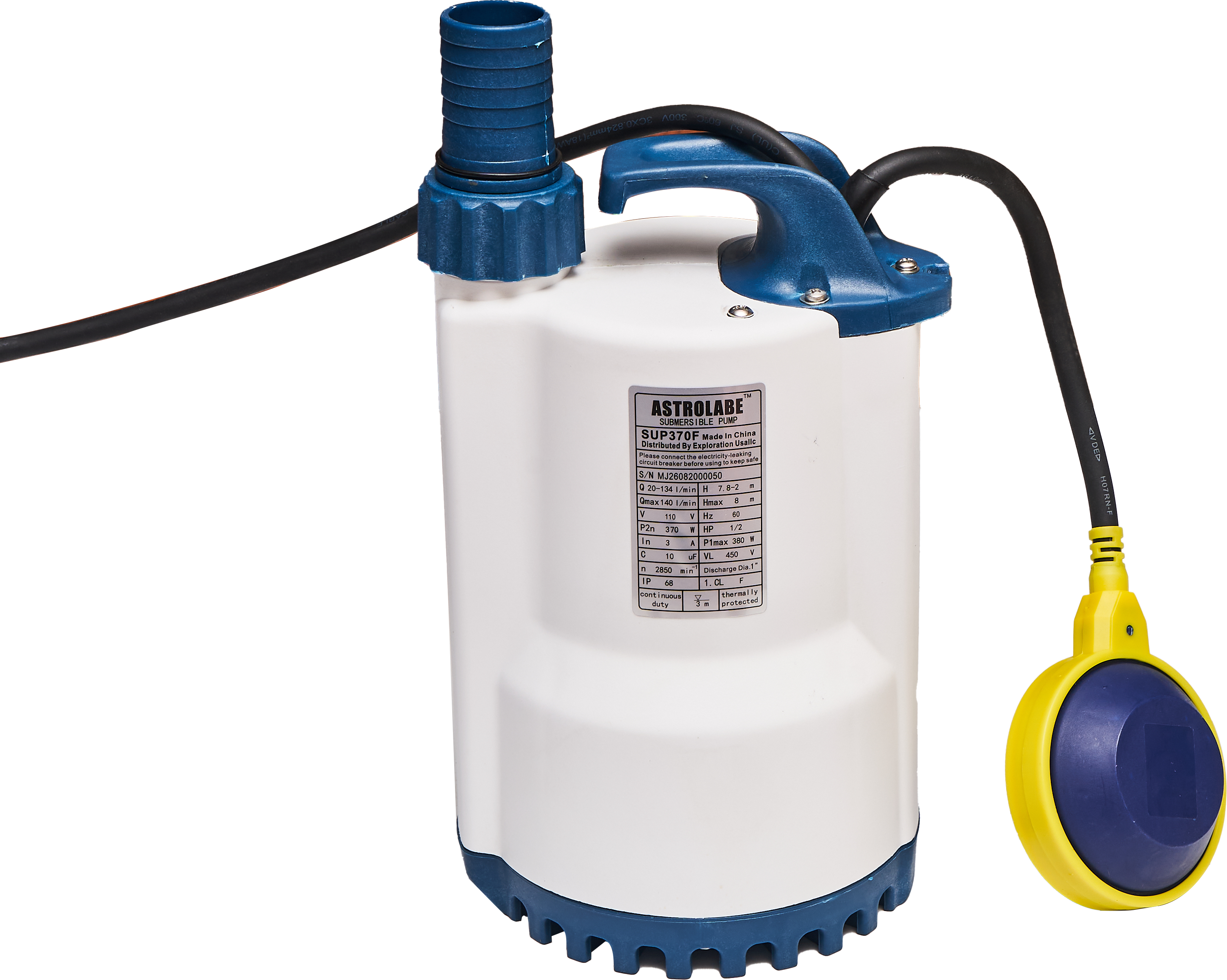

ASTROLABE SUP370F Portable Drainage Submersible
Model: SUP370FSKU: AST-SUP370F
$189.99
Columbus warehouseQuantity not confirmed
1
Shipping Options
Confirmed per order
Warranty
Contact us for approved terms
Datasheet
Available on request
Technical Specifications

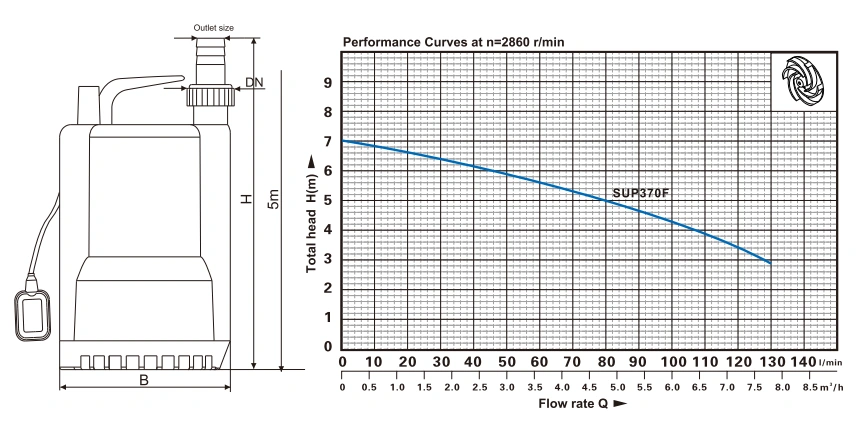

Hydraulic Performance
- Maximum flow
- 130 L/min
- Maximum head
- 7 m
Motor & Electrical
- Power
- 0.37 kW
- Voltage
- 110 V
- Frequency
- 60 Hz
- Phase
- Single phase
- Insulation class
- F

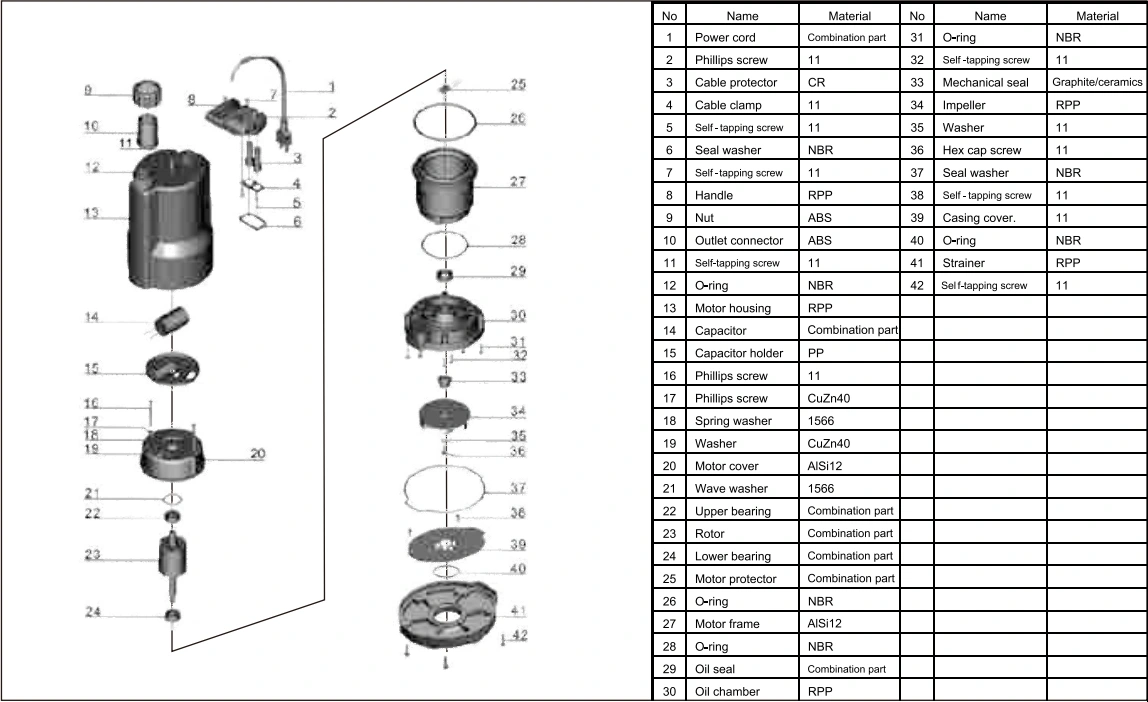

Construction & Materials
- Pump body
- Plastic
- Impeller
- RPP
- Motor winding
- Copper wire
Operating Conditions
- Maximum submersion depth
- 3 m
- Maximum liquid temperature
- 40 °C
- IP rating
- IP68

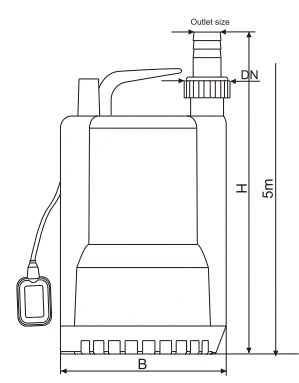

Dimensions & Weight
- Product dimensions
- DN G 1¼" · B 152 mm · H 291 mm
- Product weight
- 5.3 kg
- Carton dimensions
- 190 × 200 × 285 mm
Installation & Connections
- Outlet size
- 32 mm
- Cable length
- 6 m
- Plug
- American plug
Protection & Special Features
- Float switch
- Yes
Features & Benefits
- 0.37 kW motor — a clear power reference when comparing models.
- 110 V / 60 Hz, single phase electrical configuration for installation planning.
- Plastic pump body with a RPP impeller — specified materials for reviewing the pumped liquid and operating environment.
- Supplied with a float switch for water-level control; confirm the switching arrangement and clearance for your installation.
- 32 mm outlet — check hose or pipe compatibility before installation.
- 6 m; american plug — supplied connection details for planning the power connection.
- 5.3 kg listed product weight for handling and installation planning.
Applications
Aquarium oxygenation and pond circulationGarden and landscape irrigationGeneral-purpose standing-water removalBasement and crawlspace flood removalConstruction site dewateringPool, spa, and water-feature draining
Overview
The ASTROLABE™ SUP370F is a portable drainage submersible with a plastic body. Its compact form makes it a practical model to consider for water-removal tasks where the pump must be moved between locations. The verified catalog lists a maximum flow of 130 L/min and a maximum head of 7 m. These are separate maximum ratings, not a single operating point; actual delivery depends on the required head, pipework and installation conditions. Observe the listed maximum submersion depth of 3 m and maximum liquid temperature of 40 °C. Confirm liquid compatibility, the required flow at your operating head and electrical installation requirements before selecting this model.
