Submersible Pumps
ASTROLABE SPA530 Submersible Electric Pump
Model: SPA530SKU: AST-SPA530
$329.99
Columbus warehouseQuantity not confirmed
1
Shipping Options
Confirmed per order
Warranty
Contact us for approved terms
Datasheet
Available on request
Technical Specifications

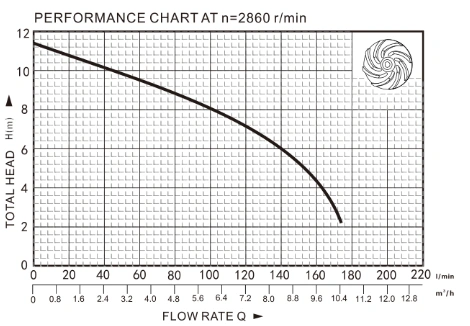

Hydraulic Performance
- Maximum flow
- 170 L/min
- Maximum head
- 11 m
Motor & Electrical
- Power
- 0.53 kW
- Voltage
- 110 V
- Frequency
- 60 Hz
- Phase
- Single phase
- Insulation class
- B
Construction & Materials
- Pump body
- AlSi12 aluminum alloy (manufacturer notation: AISi12)
- Impeller
- TPU with 201 insert
- Motor winding
- Copper wire
Operating Conditions
- Maximum submersion depth
- 5 m
- Maximum liquid temperature
- 40 °C
- IP rating
- IP68

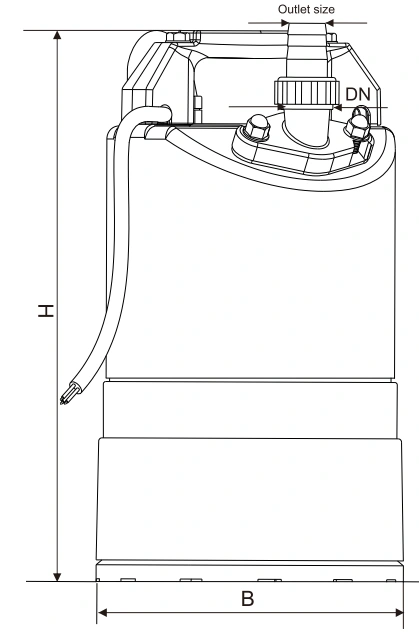

Dimensions & Weight
- Product dimensions
- DN G 1" · B 195 mm · H 335 mm
- Product weight
- 13.8 kg
- Carton dimensions
- 241 × 227 × 369 mm
Installation & Connections
- Outlet size
- 1"
- Cable length
- 6 m
- Plug
- American plug
Protection & Special Features
- Float switch
- Yes
Features & Benefits
- 0.53 kW motor — a clear power reference when comparing models.
- 110 V / 60 Hz, single phase electrical configuration for installation planning.
- AlSi12 aluminum alloy (manufacturer notation: AISi12) pump body with a TPU with 201 insert impeller — specified materials for reviewing the pumped liquid and operating environment.
- Supplied with a float switch for water-level control; confirm the switching arrangement and clearance for your installation.
- 1" outlet — check hose or pipe compatibility before installation.
- 6 m; american plug — supplied connection details for planning the power connection.
- 13.8 kg listed product weight for handling and installation planning.
Applications
Municipal worksSediment-bearing water transferResidential basement dewateringAquaculture and pond circulationIndustrial and mining facilities
Overview

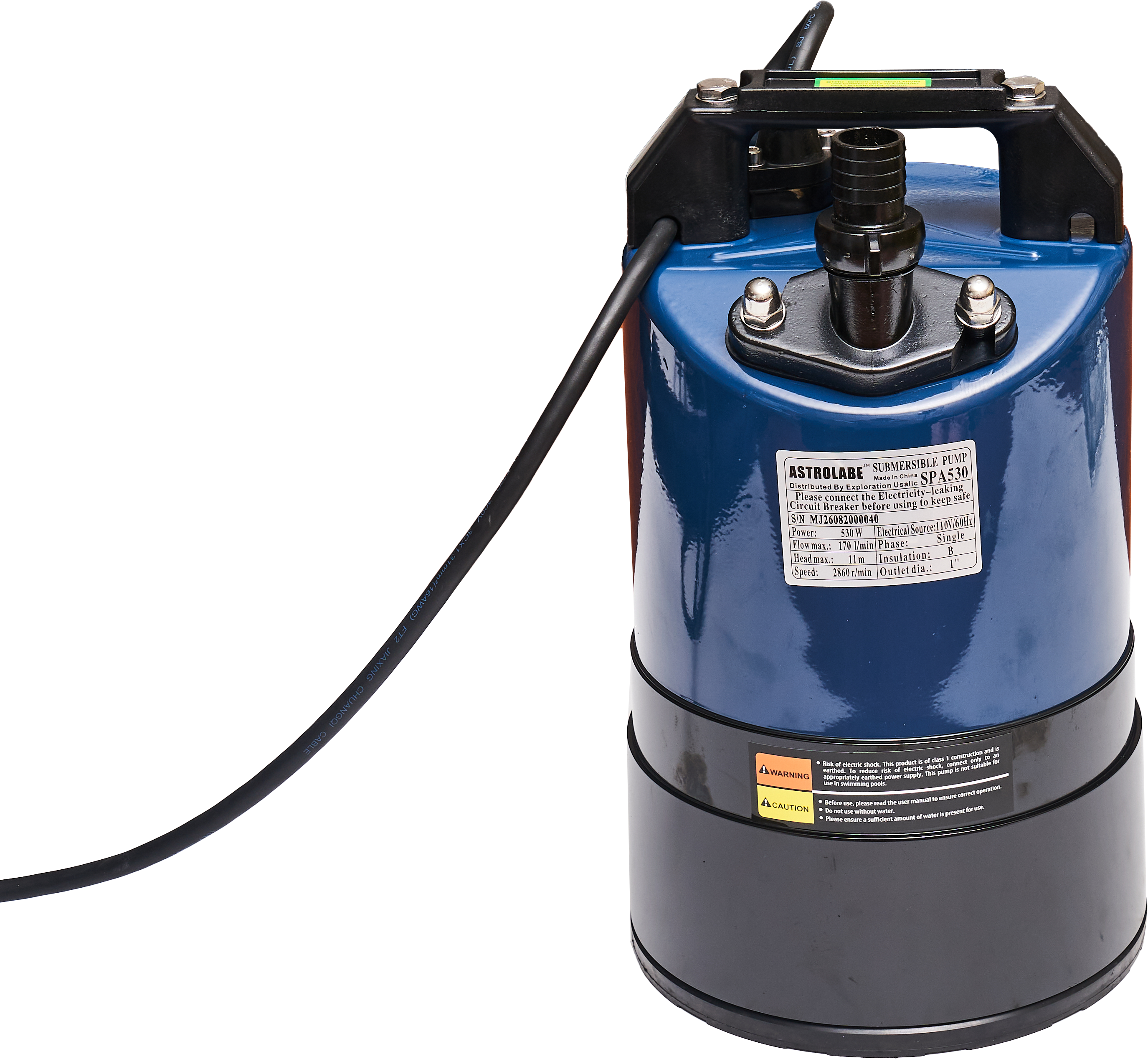

The ASTROLABE™ SPA530 is a submersible electric pump for water-transfer and dewatering projects. Its aluminum-alloy body and specified impeller construction distinguish it from the plastic-bodied drainage model in the range. The verified catalog lists a maximum flow of 170 L/min and a maximum head of 11 m. These are separate maximum ratings, not a single operating point; actual delivery depends on the required head, pipework and installation conditions. Observe the listed maximum submersion depth of 5 m and maximum liquid temperature of 40 °C. Confirm liquid compatibility, the required flow at your operating head and electrical installation requirements before selecting this model.
